Our machine shop is equipped with some of the finest state of art CNC machine tools of German Origin. They are supported by a battery of finest basic machine tools manned by highly skilled operators guided by engineers with years of experience in precision machining.

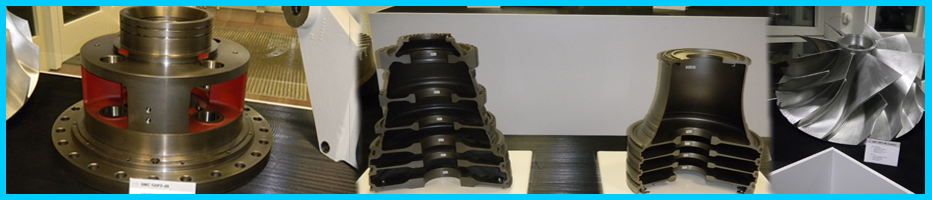

We are in the market to develop proto type and mass produce or machining of complex and precision automotive components in batch or mass production basis.
Our new and latest addition of machineries are:
1. DMC 160 FD.
2. DECKEL Maho 5 axis machining centre DMU80 monoblock.
3. DECKEL Maho 1035V
4. DECKEL Make Machining
5. DECKEL Make Universal Milling & Boring Machine
6. DECKEL Maho 5 axis machining
7. DECKEL Maho DMU - 60 Universal Milling And Boring Machine
8. Gildemeister Make CNC Turning Machine Model NEF-600
9. New CMM Machine
2. DECKEL Maho 5 axis machining centre DMU80 monoblock.
control - Heidenhain iTNC 530 {latest 3d CNC control}
Travel---X 900mm - Y 630mm - Z 630mm,
4th Axis {C axis} - inbuilt CNC indexing - 0 to 360 degrees,
5th Axis {B axis} - NC controlled swivel milling head,
Swivel range--- -30 / +120 degrees,
Spindle Speed - 18000 rpm,
Through Spindle Coolant with 40 bar pressure,
Max Load---900 Kg [on fixed table], 650 Kg [on Rotary table]. {Machine installation FEB 2011}.
3. DECKEL Maho 1035V
3 axis CNC milling machine with Fanuc control.
Travel : X axis—1035 mm / Y axis—560 mm / Z axis—510 mm.
Spindle Speed---8000 rpm.
Table load capacity---1000 Kg. {Machine installation DEC 2010}.
4. DECKEL Make machining
centre-CNC controlled Dialog 3.
Travel---X 500 x Y 500 x Z 400 mm,
Max Load---200 kg.
5. DECKEL Make Universal Milling & Boring Machine
CNC controlled Dialog - 4.
Travel---X 500 x Y 500 x Z 400 mm.- 4 Axis,
4th Axis {C axis} -inbuilt indexing - 0 to 360 degrees,
Max Load---200 Kg.
6. DECKEL Maho 5 axis machining
control-Heidenhain
iTNC 530 {latest 3d CNC control}
Travel---X 900mm - Y 630mm - Z 630mm,
4th Axis {C axis} - inbuilt CNC indexing - 0 to 360 degrees,
5th Axis {B axis} - NC controlled swivel milling head,
Swivel range--- -30 / +120 degrees,
Max Load---900 Kg [on fixed table],
---650 Kg [on Rotary table].
7. DECKEL Maho DMU - 60 Universal Milling And Boring Machine
Heidenhain Control 4 Axis.
Travel---X 600mm - Y 500mm - Z 500mm,
4th Axis {C axis} - inbuilt indexing - 0 to 360 degrees,
Max Load---350 Kg.
8. Gildemeister Make CNC Turning Machine
Model NEF - 600.
Max Turning Dia 600 mm {Dia 450 over slide} ,max length 1100 mm.
Max Spindle Speed 3000 rpm with 8 tool station.
